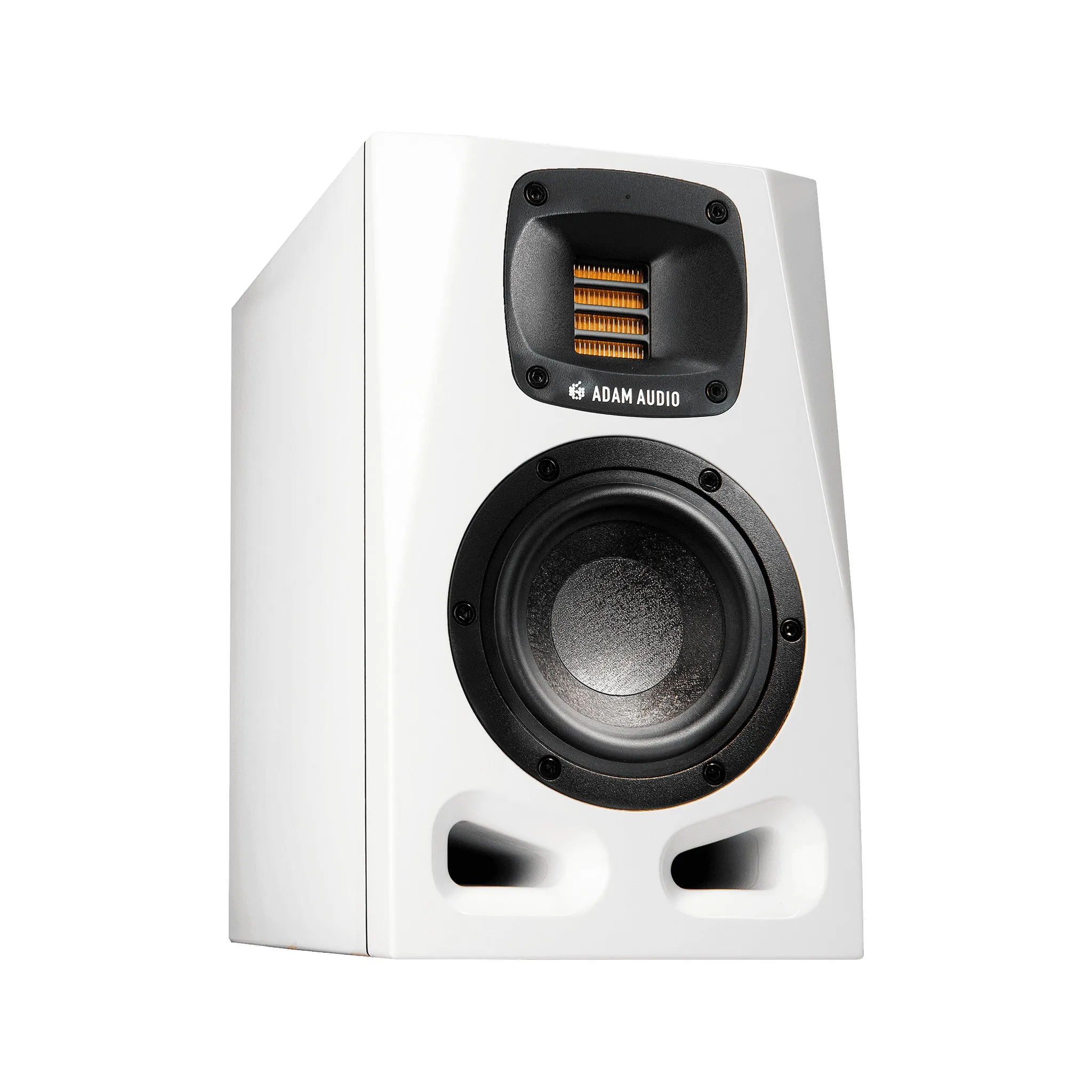

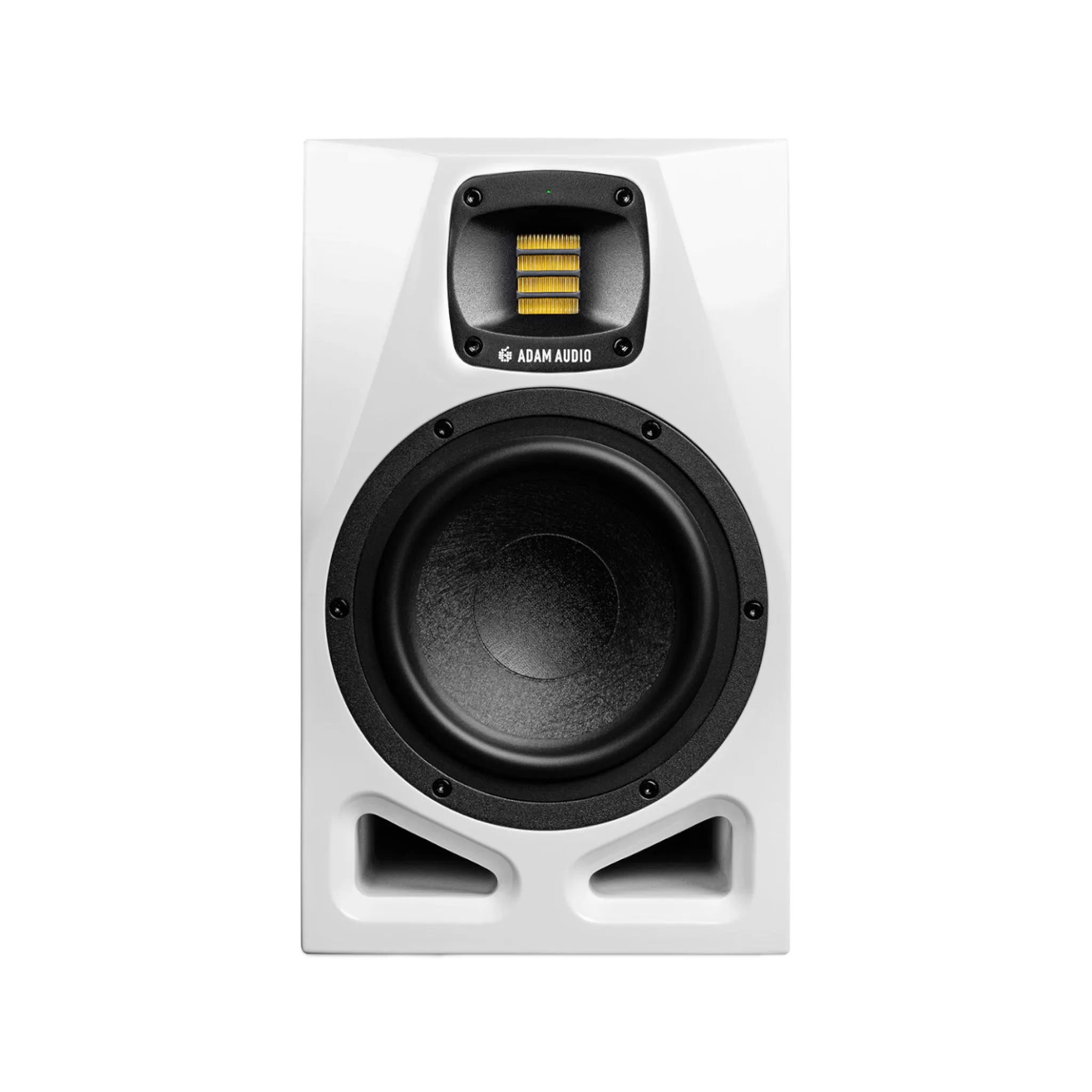

Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor.
The A4V is a two-way speaker incorporating a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibers as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space.
With a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.
Features:
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 4'' Woofer (Multi-Layer Mineral)
- Total Peak Amp. Power: 130 W
- Frequency Response @ -6 dB: 52 Hz - 45 kHz
- Maximum SPL per speaker at 1 m: 100 dB SPL
Specifications:
- Frequency Response @ -3 dB: 58 Hz – 41 kHz
- Frequency Response @ -6 dB: 52 Hz – 45 kHz
- Drivers: 4″ Basket Diameter MLM Woofer, 2" X-ART Tweeter
- Display: Front panel multi-colour LED
- Audio Input Connectors: Analog XLR, RCA
- Amplification: PWM (Woofer), Class A/B (Tweeter)
- Cabinet Design: Dual front-ported
- Cabinet Material: Vinyl-wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to 40° C ( 14° F to 104° F); <75 % RH, non-condensing
- Includes: A4V loudspeaker, power cable, Quick Start Guide
- Dimensions: 268 mm (H) x 158 mm (W) x 220 mm (D)
- Weight: 5.8 kg (12 lbs 13 oz)
