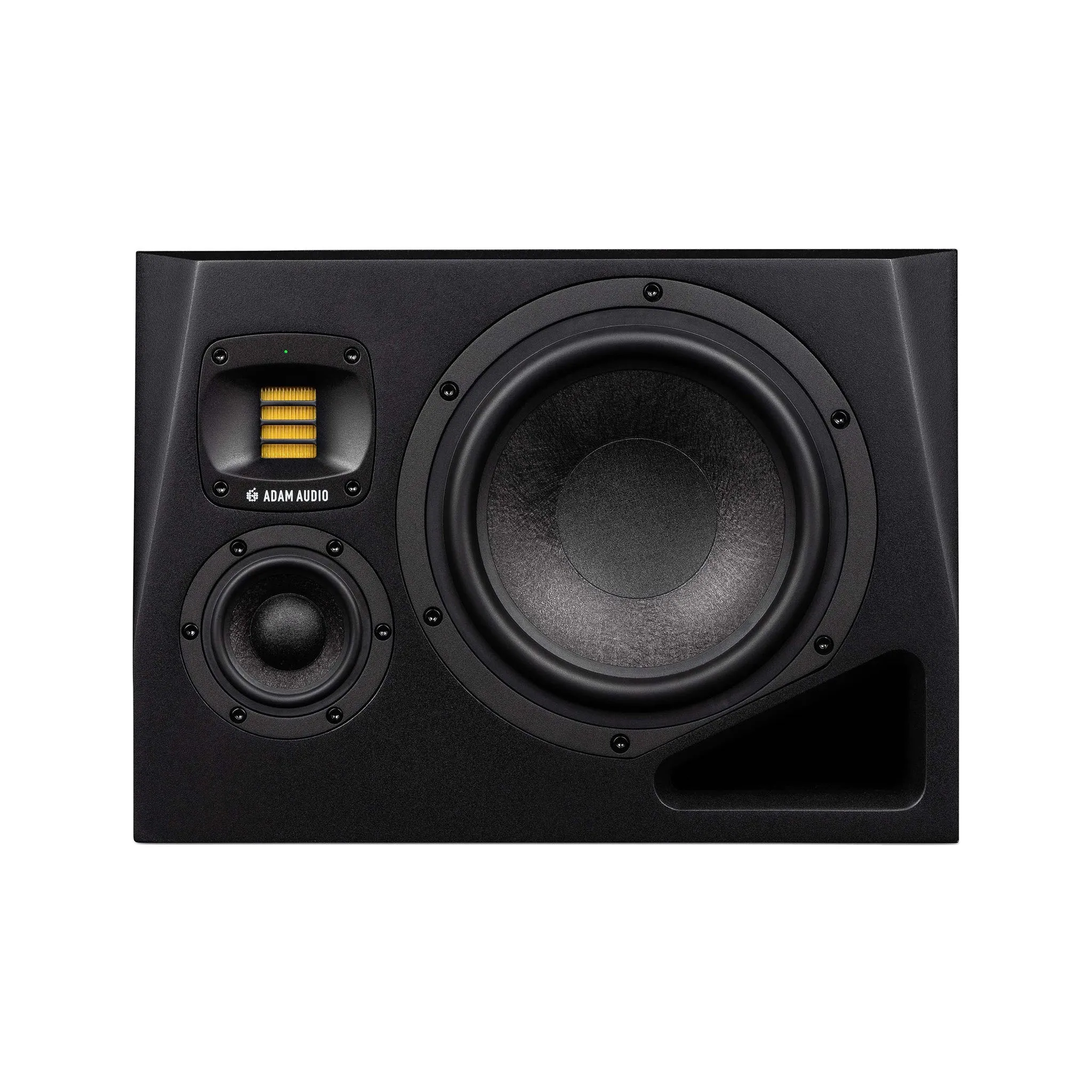

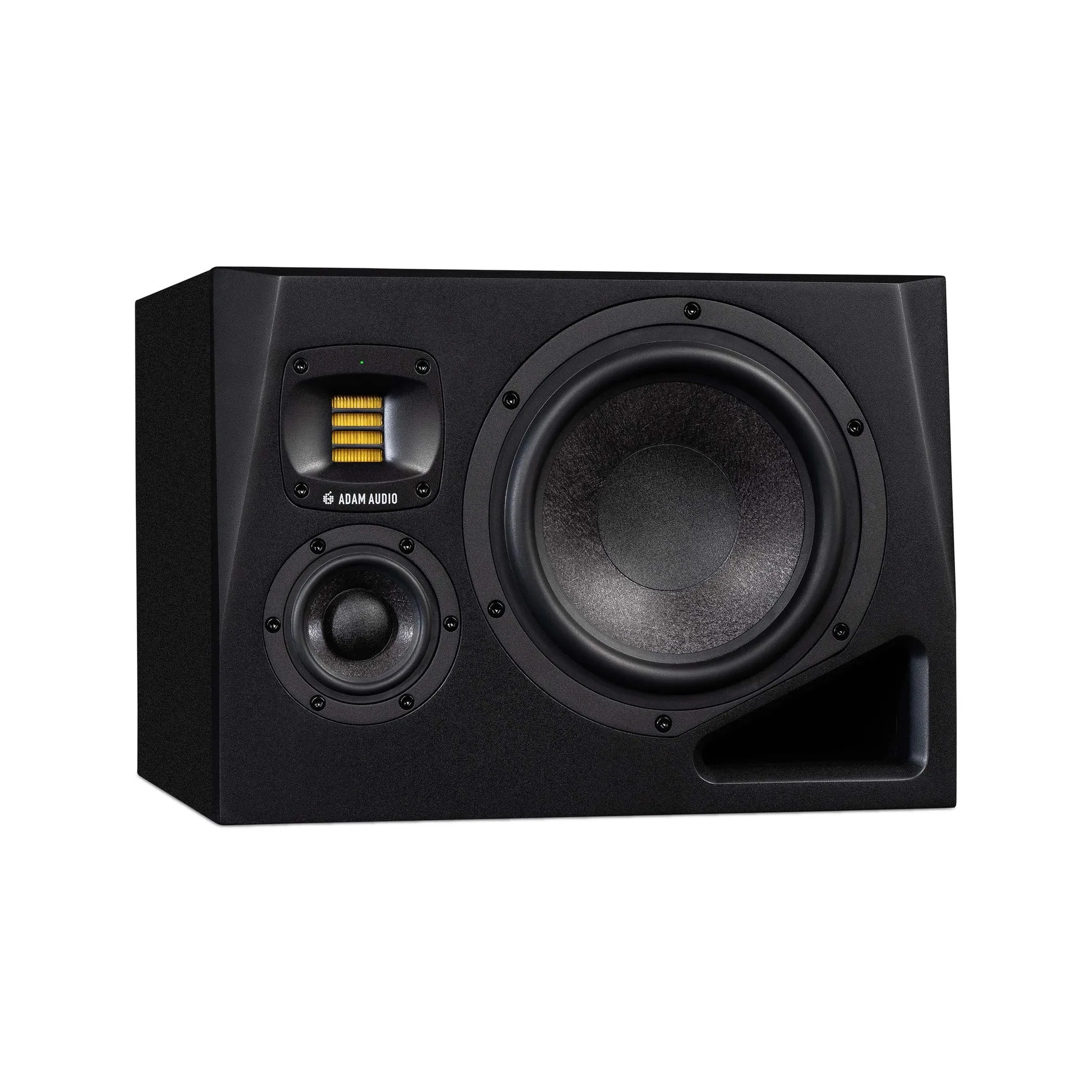

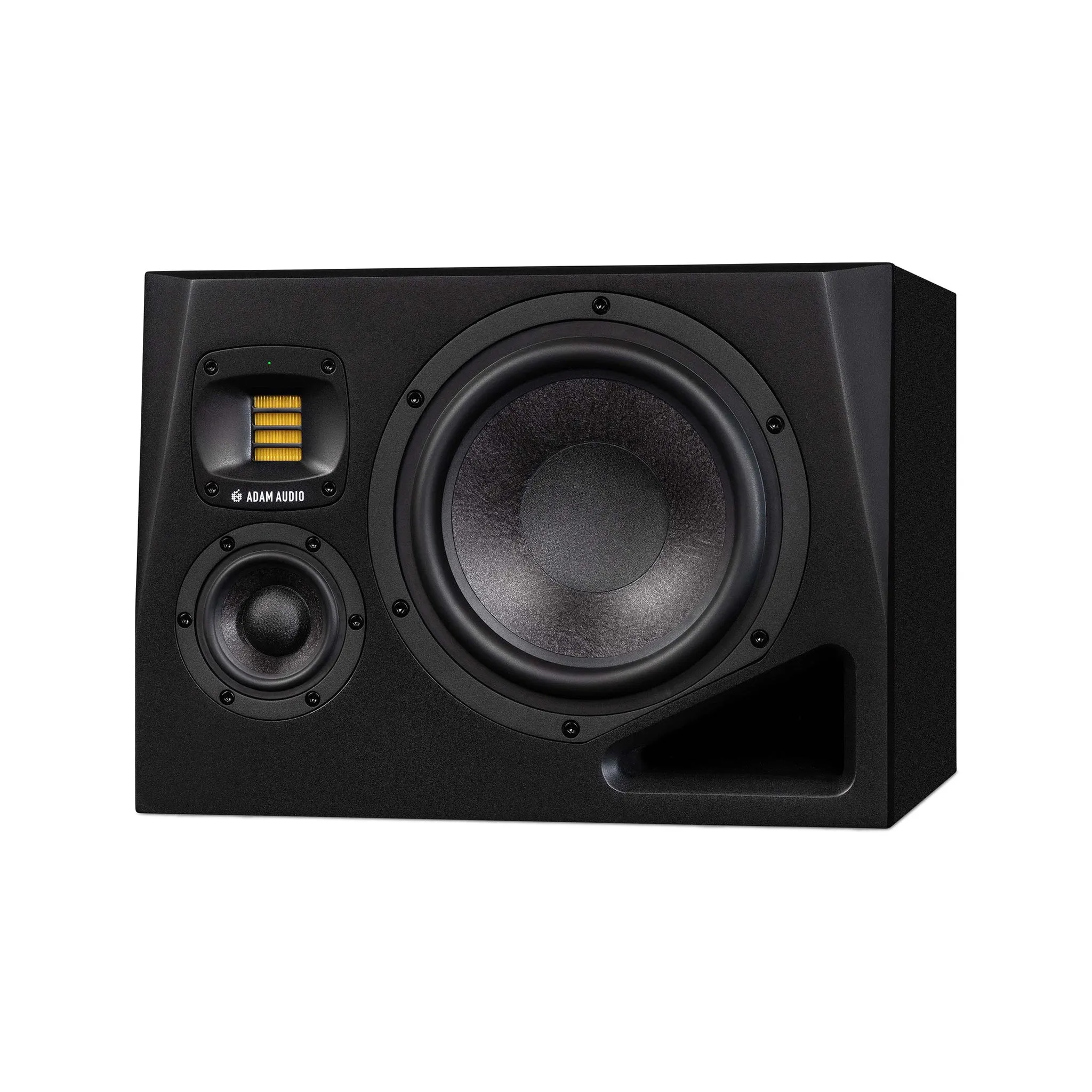

The pinnacle of the A Series, the A8H is a three-way speaker that delivers the extremely accurate and analytical sound required for critical-listening environments. The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fibre woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response. Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you’re looking for the most detailed representation of your audio.
Features:
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 8'' Woofer (Multi-Layer Mineral)
- 3.5" DCH Midrange Driver
- Total Peak Amp. Power: 340 W
- Frequency Response @ -6 dB: 31 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
Specifications:
- Frequency Response @ -3 dB: 58 Hz – 41 kHz
- Frequency Response @ -6 dB: 52 Hz – 45 kHz
- Drivers: 4″ Basket Diameter MLM Woofer, 2" X-ART Tweeter
- Display: Front panel multi-colour LED
- Audio Input Connectors: Analog XLR, RCA
- Amplification: PWM (Woofer), Class A/B (Tweeter)
- Cabinet Design: Single front-ported
- Cabinet Material: Vinyl-wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Power consumption (max, idle, sleep): 220 W, 15 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 500 W max
- Operating Conditions: -10° C to 40° C ( 14° F to 104° F); <75 % RH, non-condensing
- Includes: A8H (Right) Active Studio Monitor, power cable, Quick Start Guide
- Dimensions: 274 mm (H) x 382 mm (W) x 329 mm (D)
- Weight: 5.8 kg (12 lbs 13 oz)
